VADTel AIoTU5
Product Passport

Product Passport

General Information

Purpose

The VADTel AIoTU5 unit is designed for remote monitoring of household utility meters (gas, water, electricity), data transmission via GSM/GPRS/LTE-M/NB-IoT networks to cloud platforms, and integration into smart home systems.

Application

  • Commercial metering of resources (gas, water, electricity).
  • Smart cities and IoT infrastructure.

Compliance with EU Directives

The VADTel AIoTU5 complies with the following EU directives:

  • EMC Directive 2014/30/EU (EN 55032:2015, EN 55035:2017) — verified by SIM800C_EMC Test Report_2024.
  • EMC Directive 2014/30/EU (EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021/AC:2022-01 ) — verified by PKCELL_LP_CE-EMC_Certificate_2024
  • RED Directive 2014/53/EU (Radio Equipment Directive) — certified by SIM800C_CE(RED) Certificate_2024.
  • RoHS Directive 2011/65/EU — verified by SIM800C_ROHS_Test Report_2019.
  • WEEE Directive 2012/19/EU (Waste Electrical and Electronic Equipment).
  • GDPR (Data transmission security and privacy).
  • SAR/MPE Requirements (EN 62311:2020) — verified by SIM800C_MPE Test Report_2024.

Environmental Conditions

  • Operating temperature: -30°C ~ +60°C.
  • Humidity: up to 98% at +35°C (non-condensing).
  • Ingress Protection: IP54 (IEC 60529).
  • Impact Resistance: IK07 (EN 62262).

Power Supply

  • Built-in battery: 3.7V, Li-Ion, 1000-6000 mAh(in Order).
  • Operating voltage: 3.4–4.2V.
  • Power consumption:
    • Transmission mode: ≤600 mA.
    • Standby mode: ≤0.003 mA.

Warning

  • Installation in explosive environments is prohibited (ATEX Directive 2014/34/EU).
  • For indoor use only (Overvoltage Category II).

Identification Information

Serial Number

Each device is assigned a unique serial number. Example format: VAD-1234567890.

Manufacture Date

The production date is indicated on the device label in the format YYYY-MM-DD (e.g., 2025-04-15).

Document Version

  • Passport version: 1.1
  • Passport release date: 2024-04-21

Released By

  • Authorized Person: Markus Schmidt
  • Position: Head of Quality Assurance
  • Signature: _________________________
  • Date of Release: ___________________

Technical Specifications

Key Parameters

Parameter Value
Frequency Bands GSM: 850/900/1800/1900 MHz
LTE-M: B1/B3/B8/B20
Transmission Power (Max) 2W (850/900 MHz), 1W (1800/1900 MHz)
Communication Protocols MQTT, HTTP/HTTPS, TCP/IP
Communication Module SIM800C (CE-RED, RoHS, EMC, MPE)
Dimensions (L×W×H) 95×45×35 mm
Weight ≤0.5 kg
Service Life ≥5(10) years

Warranty

  • Warranty period: 24 months from the date of purchase.
  • The warranty becomes void if installation rules are violated or if the device is tampered with.

Package Contents

Item Quantity
VADTel AIoTU5 Unit 1
Product Passpor 1
CE Certificate 1 (electronic version)

Note

The SIM card (eSIM) is pre-activated and linked to the VADTel Cloud service.

Installation & Operation

Installation

  • Installation must be performed by certified specialists.
  • The module is easily mounted in a vacant module slot of the meter.
  • Normally, no configuration of the module is necessary.
  • Installation requirements:
    • Protect from direct sunlight.
    • Minimum distance from metal structures: 3 cm.

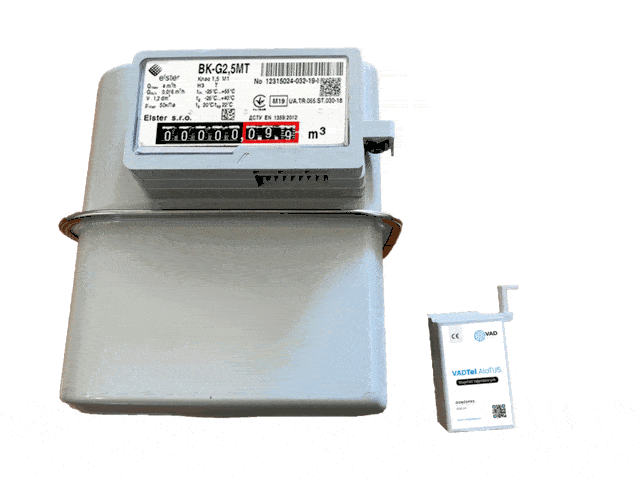

Final assembly

Maintenance

  • Annual inspection:
    • Check for housing and seal integrity.
    • Clean with a dry, soft cloth.
  • Battery replacement: after 5(10) years of operation.

Safety & Disposal

Warning

  • Do not dismantle the device — risk of battery damage!
  • Dispose of the device according to the WEEE Directive: deliver to a specialized recycling center.

RoHS Compliance

The device does not contain:

  • Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent Chromium (CrVI).
  • Polybrominated Biphenyls (PBBs), Polybrominated Diphenyl Ethers (PBDEs).
  • Phthalates (DEHP, BBP, DBP, DIBP) in concentrations exceeding 0.1%.

Contacts

  • Manufacturer: V.A.D. Technical Engineering and Investment s.r.o.
  • Address: Konvetna 6, 81 103 Bratislava, Slovakia.
  • Phone: +421 910 411 379.
  • Email: inbox@vadsro.eu.
  • Website: https://vadsro.eu.

EU Declaration of Conformity

The VADTel AIoTU5 device complies with the requirements of EU directives. The full text of the declaration is available on the manufacturer’s website.

CE Marking

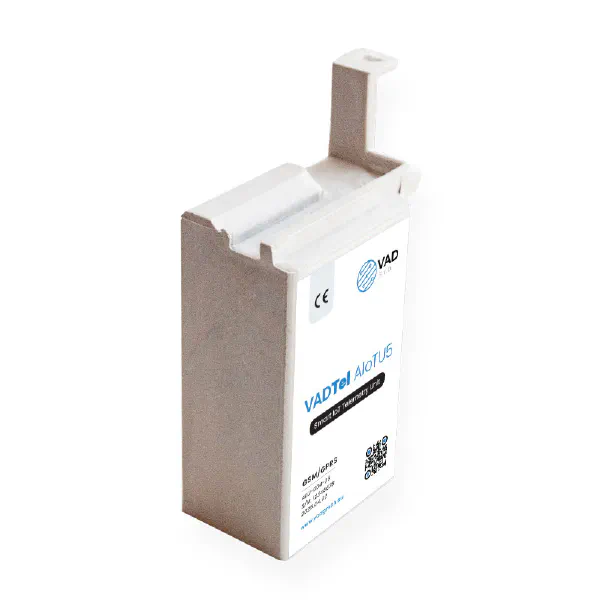

Smart telemetry module VADTel AIoTU5

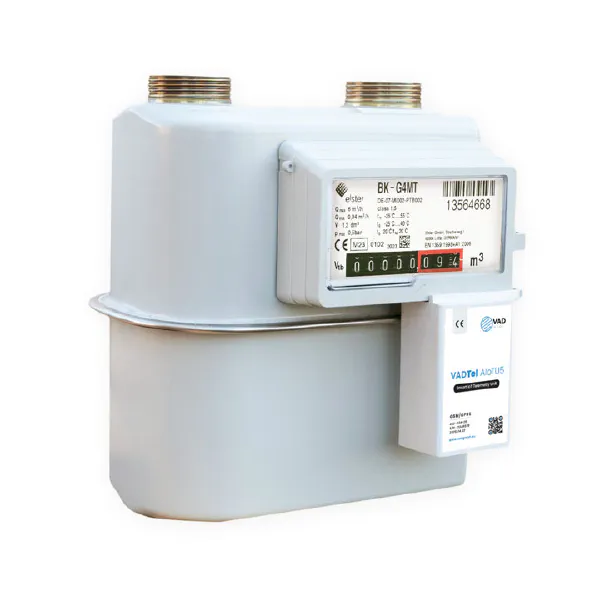

Module connected to Elster gas meter

Revision History

Version Date Changes
1.0 01.2024 Initial release.
1.1 07.2024 Added references to SIM800C certificates.

Additional Information

SIM800C Certificates

  • CE-RED (2024): Compliance with Directive 2014/53/EU (Radio Equipment).
  • EMC (2024): Successfully passed electromagnetic compatibility tests.
  • MPE (2024): SAR levels within limits (≤1.6 W/kg).
  • RoHS (2019): Free of hazardous substances. All certificates are available upon request through customer support.
