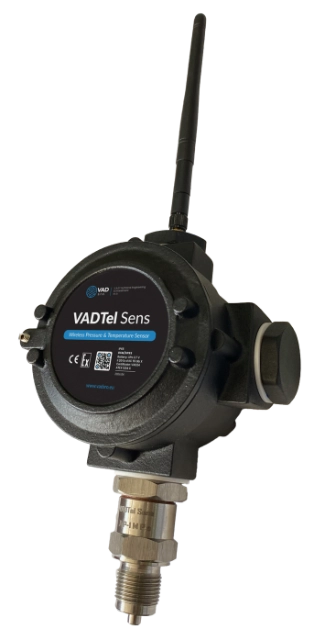

VADTel Sens
Smart IoT pressure and temperature sensors VADTel Sens are designed for monitoring systems for operating parameters in industry: gas facilities, hydraulic and pneumatic systems, water treatment and heat supply systems, boiler automation, water supply automation, heating points, etc., where increased accuracy of pressure measurement is required.
Online monitoring and alarm notifications
The sensor will reliably inform you about the state of pressure and temperature in the resource supply networks.
Customizable settings

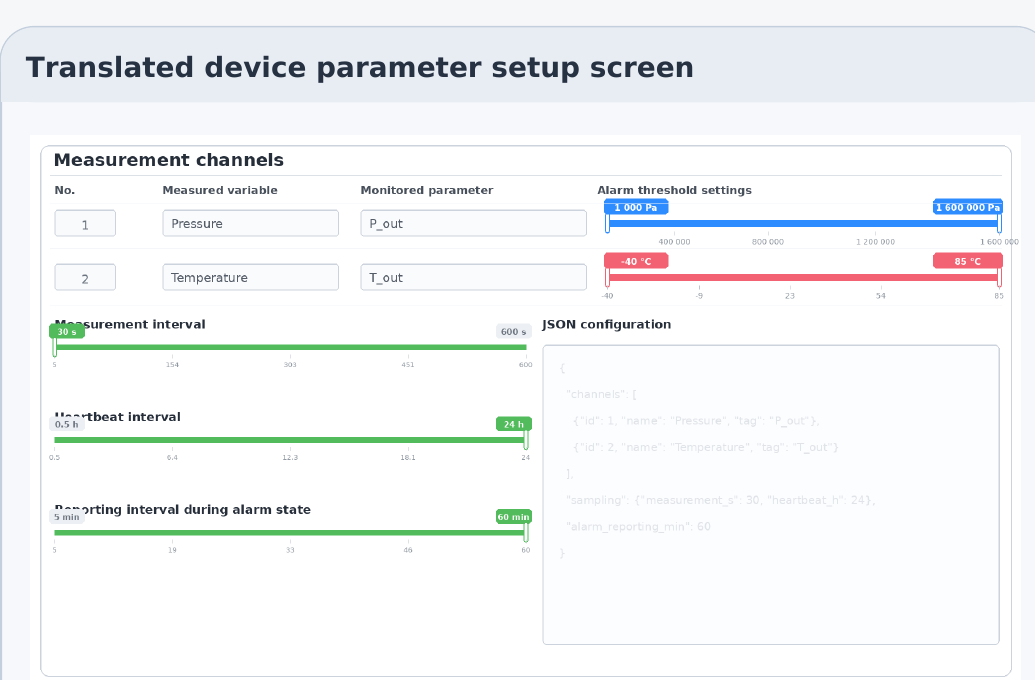

Dispatcher configures a frequency of measurements, a schedule for transferring data to the server, and the boundary values for out-of-order data transfer.
Secure data transfer
The data collection and processing server is implemented on the basis of the Unix/Linux platform, certified according to the security requirements for operating systems.
Technical Specifications
- Gauge and absolute pressure sensors.
- Rechargeable Battery life is up to 10 years.
- GPRS/NB-IoT, continuous measurement mode.
- IP65.
- Permissible overload 1.5 Rmax
- Operating temperature range from -40 °C to + 85 °C.
- Controlled parameters: pressure, measurement accuracy 1%; temperature, measurement accuracy ±1 °C.
- Customizable parameters: measurement frequency; schedule of data transfer to the server; limit values for out-of-order data transmission.
- Gas control: CO, CH4, C2N2, HF, HN3 and other dangerous gases.
- Air/microclimate parameter control.
- Control of electrical network parameters.
- Control of water parameters.
