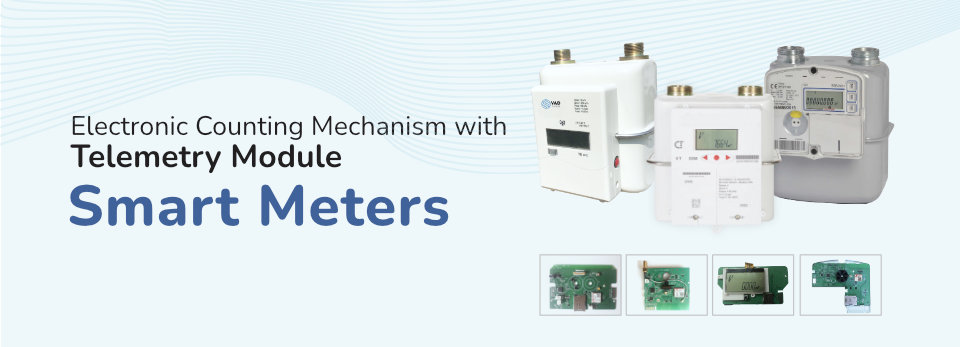

Electronic counting mechanism with telemetry module

Alphanumeric LCD display.
High quality PCB antenna.
Resistance to ultraviolet radiation.
Extended temperature range from -40 to +60 °C.
Proprietary data transfer protocol, low load on the GSM network.
Two independent power supplies - for the metrological and telemetric parts of the board.
Storing and transferring archives to the server: accumulated volume; consumption and temperature values averaged over an hour; archives of accidents, emergency situations, events.

Reduced power consumption, telemetry power supply LiPo 2000mAh 4.2 - 3.4V.

Controller supports internal firmware and fast data exchange with the server.

The amount of traffic is minimized by transmitting only incremental data.

Automatic transmission of Smart Meter readings to the collection server, remote control of the shut-off valve, monitoring of leaks and exceeding the maximum flow rate.
Controlled parameters: archives of meter readings, emergency situations, events, interventions, impacts, etc.
Various display modes.
It is possible to easily adapt the board to any type of membrane natural gas meter.
